X-Ti 5 | Double-Fold Titanium Wood Stove | POMOLY New Arrival 2025
-
Customized Requirements
-
Detail
- Product Name: X-Ti 5 | Double-Fold Titanium Wood Stove | POMOLY New Arrival 2025
- Item NO.: PM0209
- Weight: 2.5 kg = 5.5116 lb = 88.1849 oz
- Category: Tent Stoves > X-Ti Series 2025 > X-Ti / X-Ti 5
- Brand: POMOLY
- Creation Time: 2024-10-24
- 【Smaller size, Larger Capacity】A sufficiently large stove volume is obtained with a minimum storage volume.
- 【More Fire-resistant Glass】More glass can provide more thermal radiation, allowing the heat from the stove to be transferred to the tent space more quickly.
- 【Double Folding Design】We can assemble the stove in one minute.
- 【Titanium Chimney】7cm diameter, Improve burning efficiency.
- 【Titanium Chimney Base】Upgraded to embedded inverted. (Used with titanium section chimney)
- 【Titanium Spark Arrestor】Ultralight design, the protruding part is used to absorb sparks.
- 【Firebox Bottom Plate】Add air intakes on both sides of the bottom plate, reduce the blackening of the glass and improve the burning efficiency at the rear.
- 【TA1/GR1 Titanium】Precision-crafted in GR1 Titanium that will never rust or corrode, ideal for as a heat source for a hot tent or cooking meals in the wilderness.
- 【Refractory Glass】The glass viewing window creates a pleasing atmosphere.
- 【Strengthening Firebox】Enhance the rigidity of the stove and minimize deformation.
- 【Reinforced Top Cover and Baseplate】Strengthen the rigidity of the top cover and further reduce the deformation of the top.

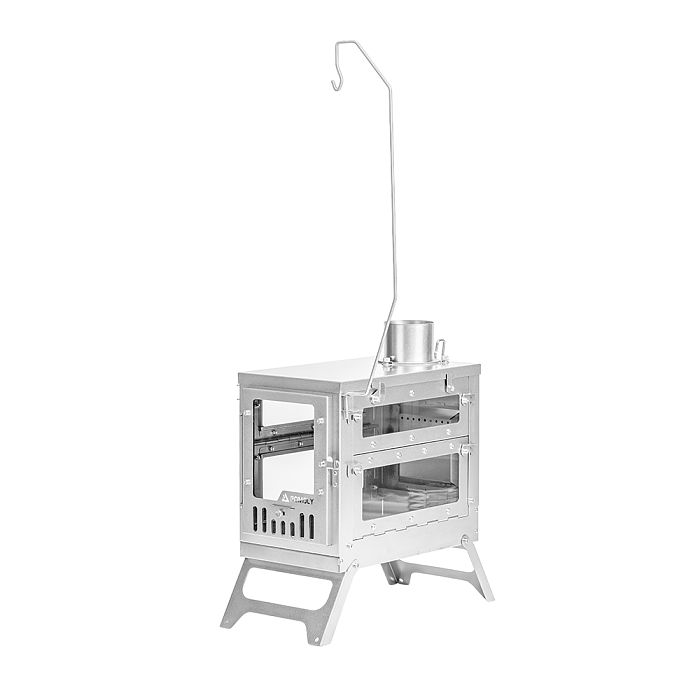

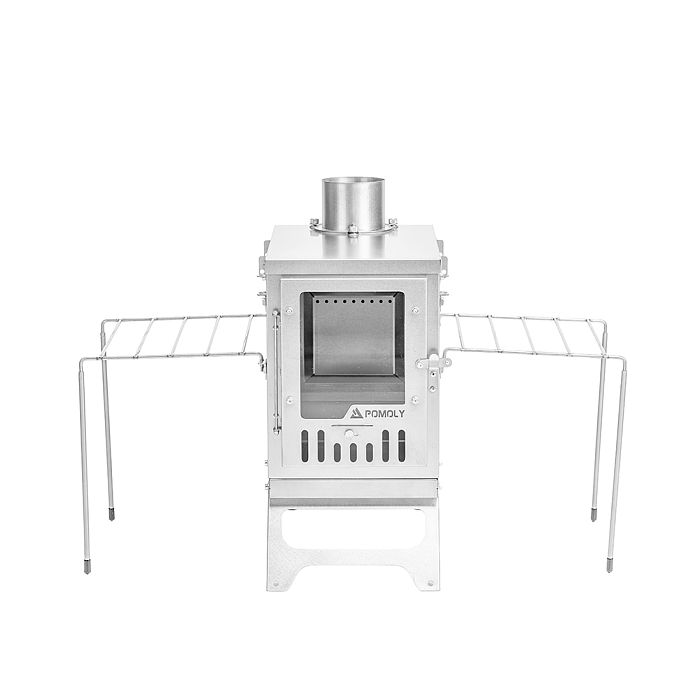

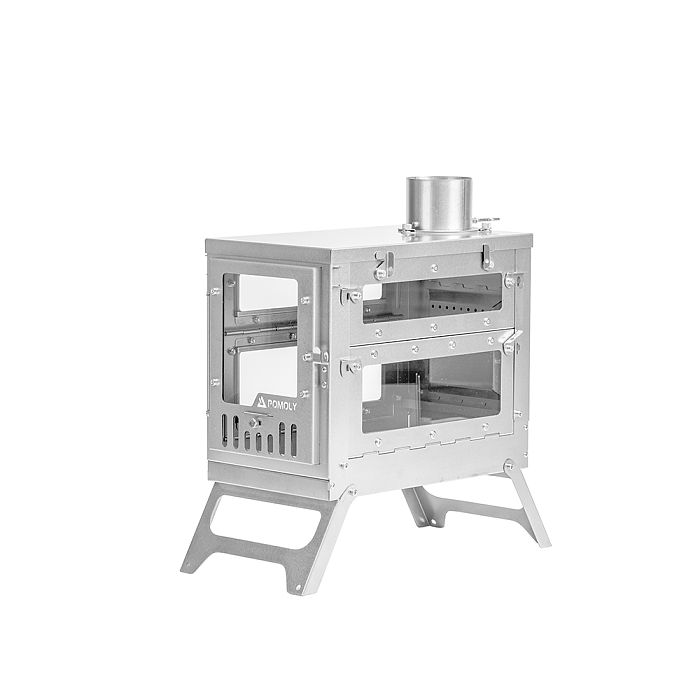

POMOLY X-Ti 5
Double Folding Titanium Stove
At the beginning of 2020, POMOLY officially introduced its iconic first product to the market - the T1 Series titanium foldable wood stove. As of November 2024, statistical data shows that the T1 Series has sold over 10,000 units, fully demonstrating its outstanding performance in the field of outdoor titanium stoves. This series exclusively uses 1.0mm thick titanium metal material and incorporates a precise reinforced rib structure design. This technological innovation ensures that the stove body maintains structural stability and durability even after enduring prolonged combustion. To this day, the T1 Series continues to attract numerous loyal users, and we have collected thousands of valuable pieces of user feedback.
POMOLY has always been committed to finding the optimal balance between portability, ease of use, and long-lasting combustion in titanium stove products:Portability: Continuously exploring and enhancing the portability of titanium stove products to meet users' carrying needs in different environments.Ease of Use: Deeply researching and simplifying the stove's operation procedures to provide a more intuitive and convenient user experience.Long-lasting Combustion: Improving the stove chamber design to enhance fuel efficiency and achieve longer burning times.
Based on the aforementioned in-depth research and exploration, POMOLY successfully launched a new generation of titanium stove products in 2024 - the X-Ti Series.Compared to its predecessor, the T1 Series, the X-Ti Series represents a comprehensive innovation in design philosophy. It utilizes three different thicknesses of titanium metal materials - 0.6mm, 1.0mm, and 1.5mm - to construct a more efficient and durable stove body:The 0.6mm thick titanium plate is used as the main structural material for the stove body, ensuring the stove's lightweight nature for easy carrying and mobility.The 1.0mm thick titanium plate is cleverly employed as reinforced ribs, effectively enhancing the resistance to deformation of both the stove body and the top cover, thereby improving product durability.The 1.5mm thick titanium plate is used for the reinforced blocks at the chimney opening, ensuring no deformation or distortion occurs even after prolonged use, thus enhancing the stability and safety of the top cover.
In terms of structural design, the X-Ti Series features an innovative secondary folding and rotating latch design. Compared to the T1 Series, the X-Ti Series is smaller in volume and lighter in weight when stored, but has a larger capacity when unfolded, allowing it to hold more firewood and achieve longer burning times. Additionally, considering the scientific principle that the outer flame temperature is higher than the inner flame, the X-Ti Series is designed with a tall and slender structure, enabling the outer flame to fully contact the top cover, thereby improving cooking efficiency and heat energy utilization.
CHART Stove Type Portable Titanium Stove Stove Weight 5.5 lb / 2.5 kg Spark Arrestor 0.13 lb / 0.06 kg Chimney Damping Base 0.22 lb / 0.1 kg 3m Chimney 0.93 lb / 0.42 kg Gloves 0.15 lb / 0.07 kg Glass Fire-Resistant Firebox Volume 16.6 L Folding Size 12.3 x 8 x 4.06 in
(31.2 x 20.2 x 10.3 cm)Firebox Size 12.3 x 8 x 10.4 in
(31.2 x 20.2 x 26.4 cm)Assembly Size 15.3 x 8 x 13.7 in
(38.8 x 20.2 x 34.9 cm)
Material Titanium TA1 / GR1 Chimney Length
(Storage)
11 in / 28 cm Chimney Diameter 2.76 in / 7 cm
WHAT'S INCLUDED:
X-Ti 5 Stove
Titanium Chimney
Stove Bag
Chimney Damping Base
Spark Arrestor with 3 Rings
Cut Resistant Gloves
Titanium Chimney System - 7cm / 2.76in
Ultralight spark arrestor, three detachable rings for wind ropes fixing.
Reduce the hollow area, the convex is good for catching sparks.
Upgraded to embedded inverted. (Used with titanium section chimney)

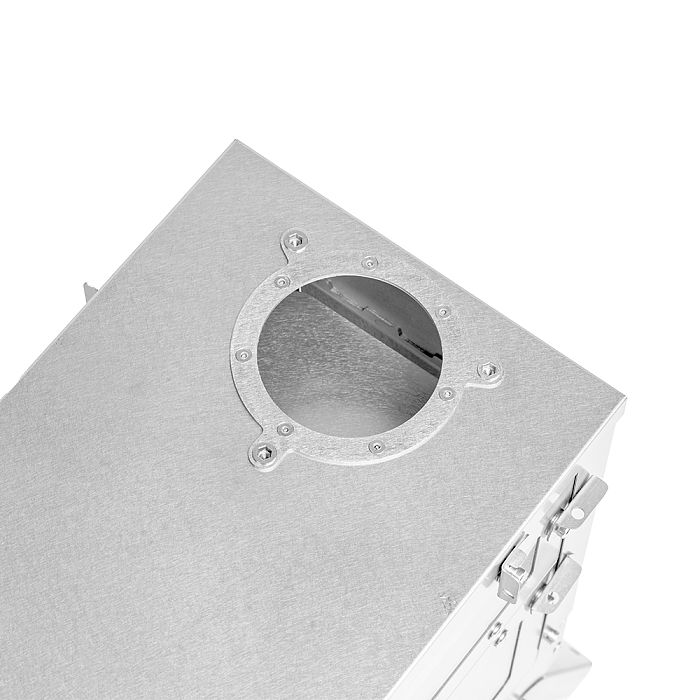

Base Edge Reinforcement Ring
We added a thicker reinforcement ring below the chimney damper to make the edge more resistant to deformation.
Reinforced Structure Top Cover / Detachable Baffle
The three-dimensional hollowed-out reinforced plate minimizes the deformation of the top cover.
Reduce the direct contact between the flame and the top central area to avoid local high temperature and local low temperature, resulting in uneven heating of the top cover.
After testing, the reinforcing plate can not only strengthen the top cover, but also maximize the heating range of the top cover.
Tips: The stove must be fixed with guy-lines during burning, if the chimney is not fixed, the chimney will sway from side to side, which will cause the top cover of the stove to rise and fall continuously, which will eventually cause the top cover to warping.
The detachable baffle can maximize the burning heat efficiency of the wood and also block sparks.

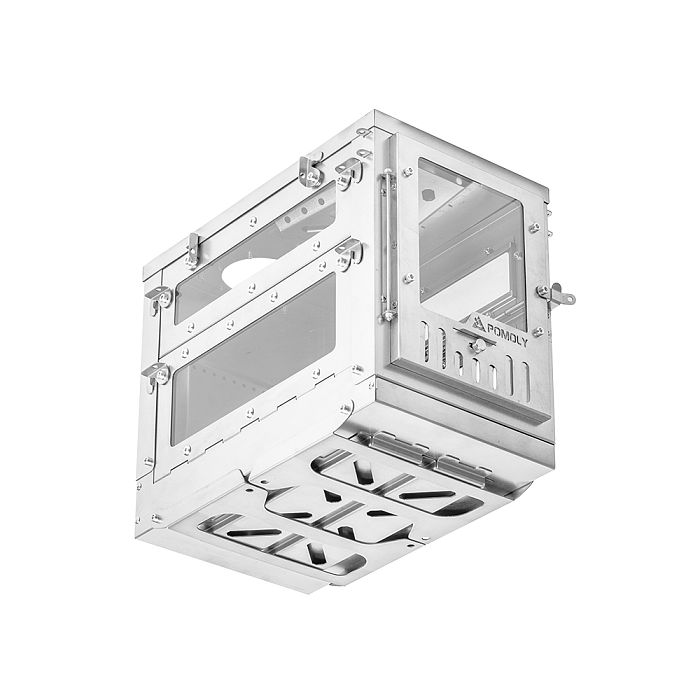

Reinforced Bottom Plate and Secondary Air Intake Tailboard
Under the condition of ensuring light weight and portability, X-Ti 5 adopts a three-dimensional reinforced bottom plate. The welding points minimize the deformation of the stove after burning and hollow octagons can enhance the heat dissipation effect.
After the stove has been burned for many times, the bottom of the firebox will be partially warped (Caused by thermal expansion and contraction), but under the action of the external reinforced plate, the whole firebox is still in a state of no deformation, which is convenient for the next installation and use.
Folding Legs
X-Ti 5 legs are made of a whole piece of titanium plate, which has a stronger bearing structure.
The raised design in the middle of the stove legs are suitable for uneven ground.

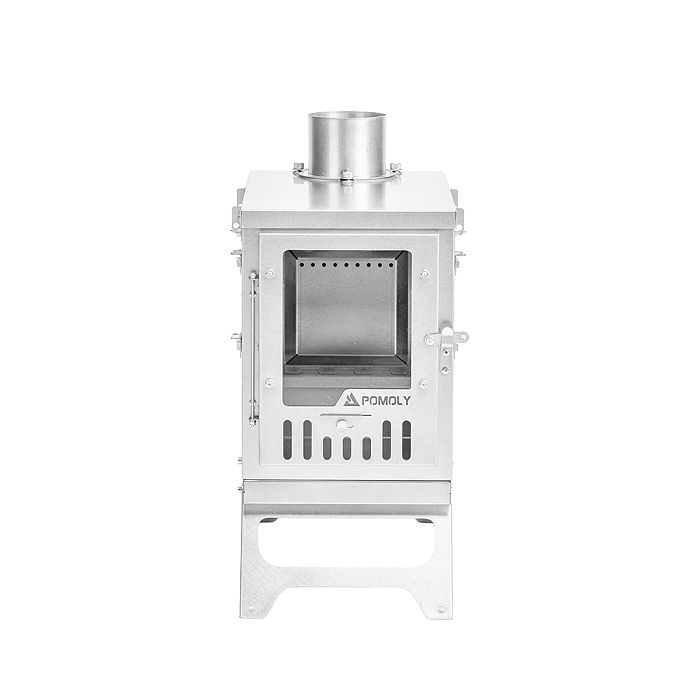

Stove Door
The door of the X-Ti 5 stove was widened and heightened so that large pieces of wood to enter the stove easily.
The edge of the door was 90-degree folded and 360-degree folded processing. The 90-degree edge can strengthen
the structure of the door frame, and the 360-degree folding can keep the door frame flat with the bottom of the stove.
More Precise Hinges
In order to reduce the gap between the hinges and greatly reduce the risk of smoke leakage, we have manufactured a new hinge mold, making the X-Ti 5 of the hinge more precise and tight.
Front Air Intake
X-Ti 5 stove has a slidable air intake, so that we can fine-tune the burn rate.
Accessories

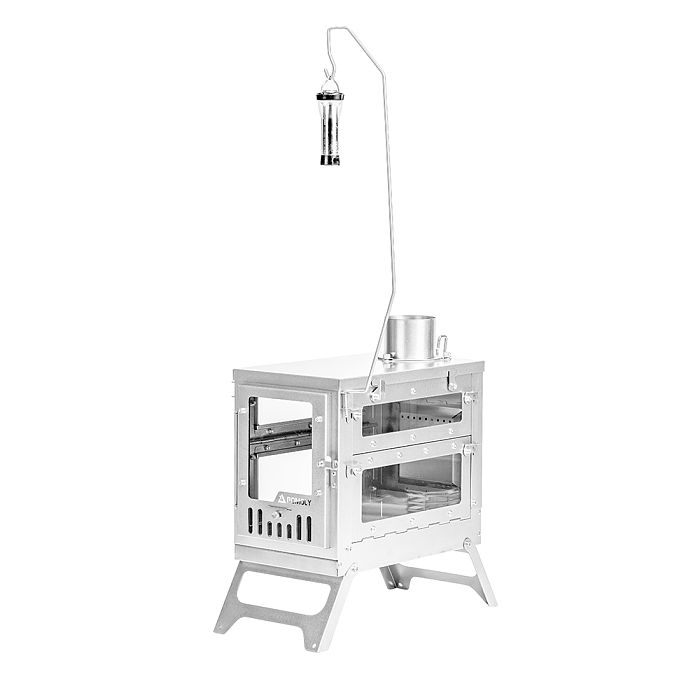

The lantern hook can be matched with the X-Ti stove body to provide illumination during cooking. It can also be used together with poles and inserted into the ground for use.
